26 phantom XC
Blac
-
- Drivetrain
- Power assist(5mode) / Throttle(Including cruise control)
-
- Mileage
- Throttle : 40km / Power assist (mode 1) : 90km
-
- Top speed
- 24km/h
-
- Gradability
- 7°
-

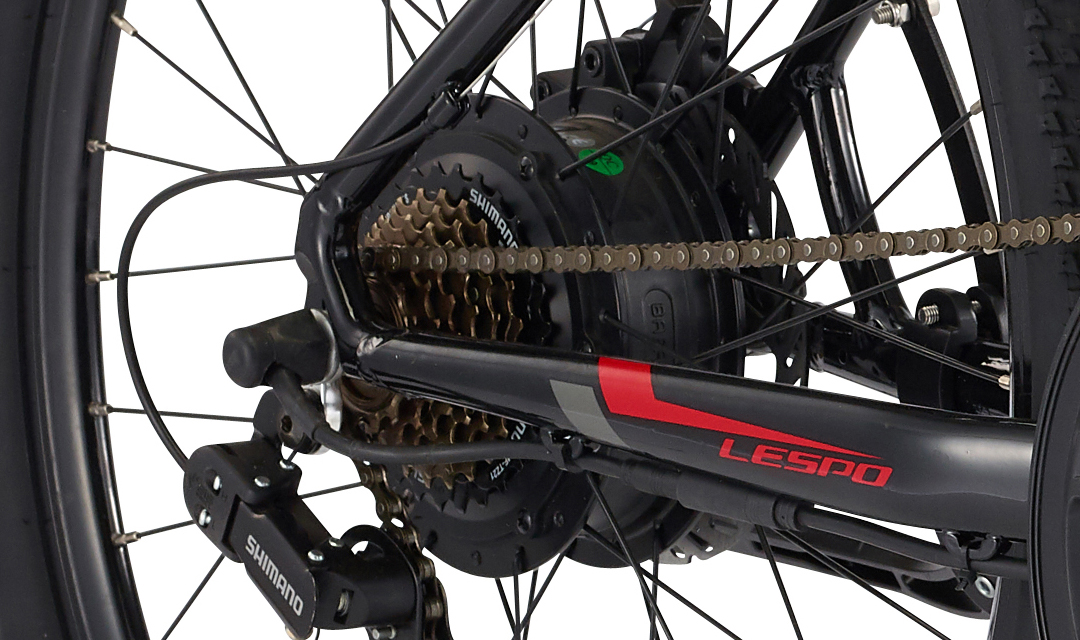

- Motor
- BAFANG 36V 250W BLDC in-wheel motor, maximum torque 42N.m
-
- Battery
- LI-ION 36V 9.8Ah (SAMSUNG SDI CELL)
-

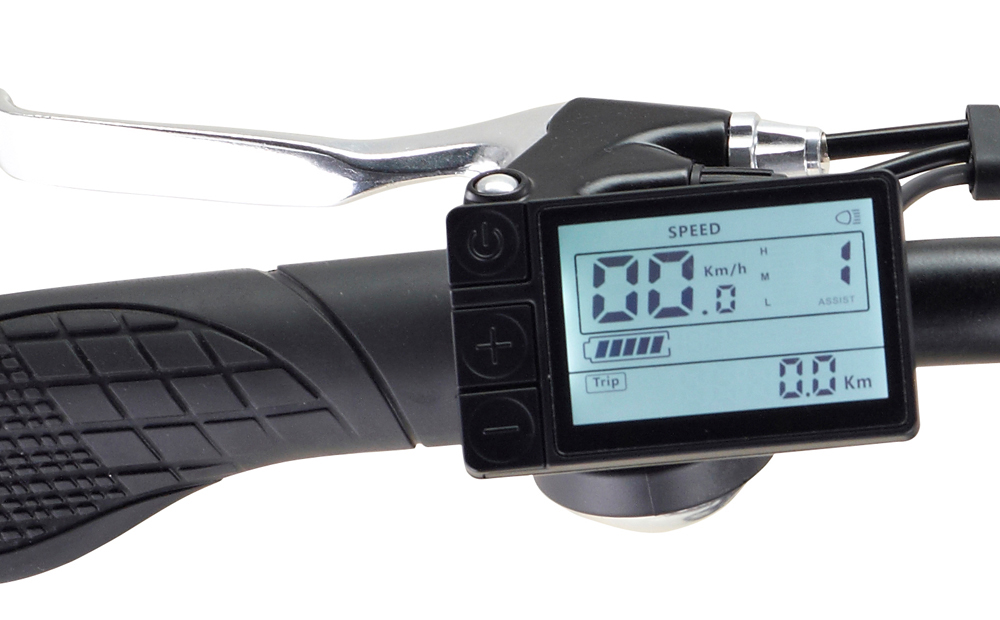

- Display
- LCD display
-
- Charger
- 42V/2A, CC/CV
-
- Frame
- 26 Aluminium E-bike frame
-
- Headset
- 1-1/8" (28.6/44/30) ahead
-

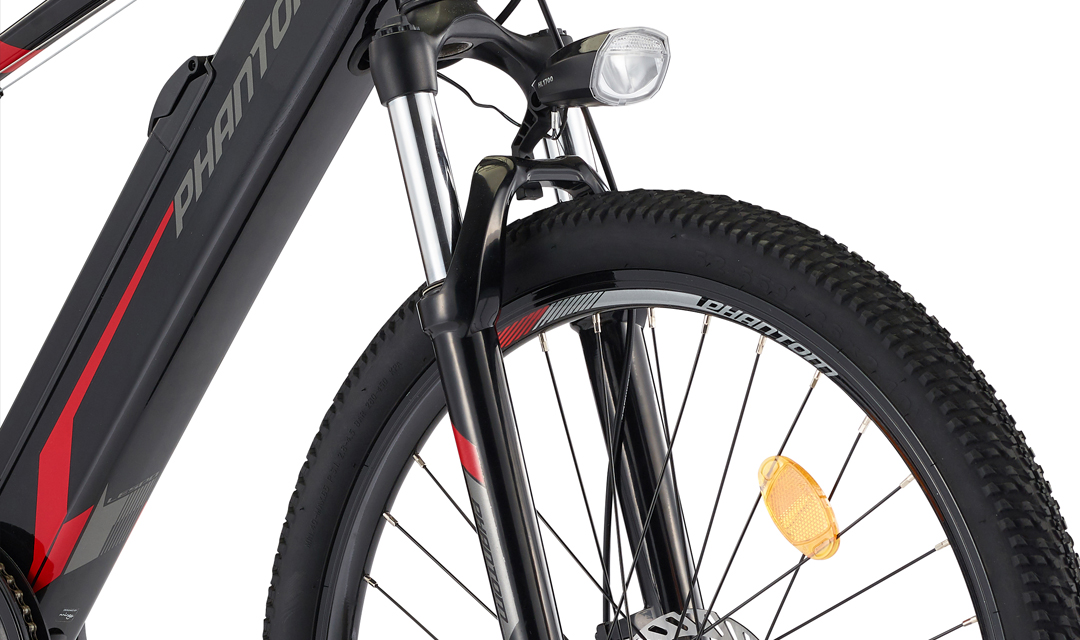

- Fork
- Suspension fork (Aluminium crown)
-
- Drivetrain
- SHIMANO 7-speed drivetrain
-
- Derailleur
- Rear : SHIMANO RD-TZ31
-
- Shifters
- Rear : SHIMANO thumb shifter SL-TX30
-
- Crankset
- 52T, 170mm aluminium crank arms
-
- Freewheel
- SHIMANO MF-TZ500-7, 14-28T, Multi freewheel
-
- Chain
- KMC Z51
-

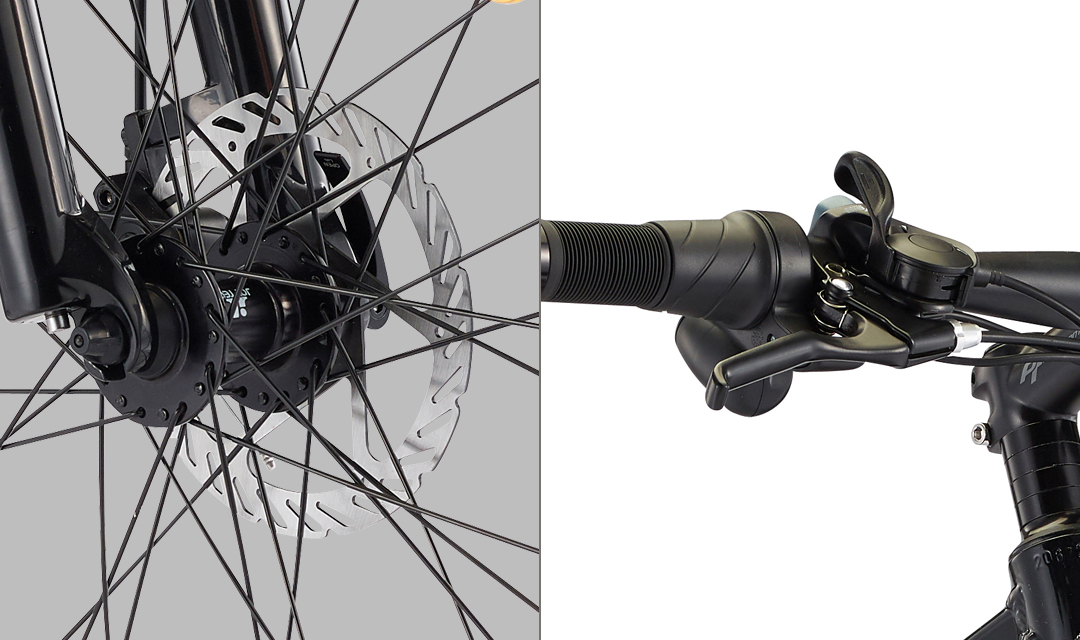

- Brakes
- Mechanical disc brake (Ø160 rotor)
-
- Brake levers
- Aluminium brake lever with motor power cut-off function
-
- Rims
- 26 aluminium double walled rims
-
- Spokes
- 13G stainless steel spokes
-
- Tires/Tubes
- KENDA 26 x 2.1 / EV tubes (for E-bike)
-
- Handlebar
- Aluminium riser bar (Width : 640mm, Ø31.8)
-
- Handle stem
- Aluminium ahead stem (Extension : 80mm, Angle :7°)
-
- Seatpost
- Ø31.6 x 350mm aluminium seatpost
-
- Seat clamp
- Ø36.5 aluminium QR seat clamp
-
- Pedals
- Aluminium pedals
-
- Weight
- 22.2 kg
